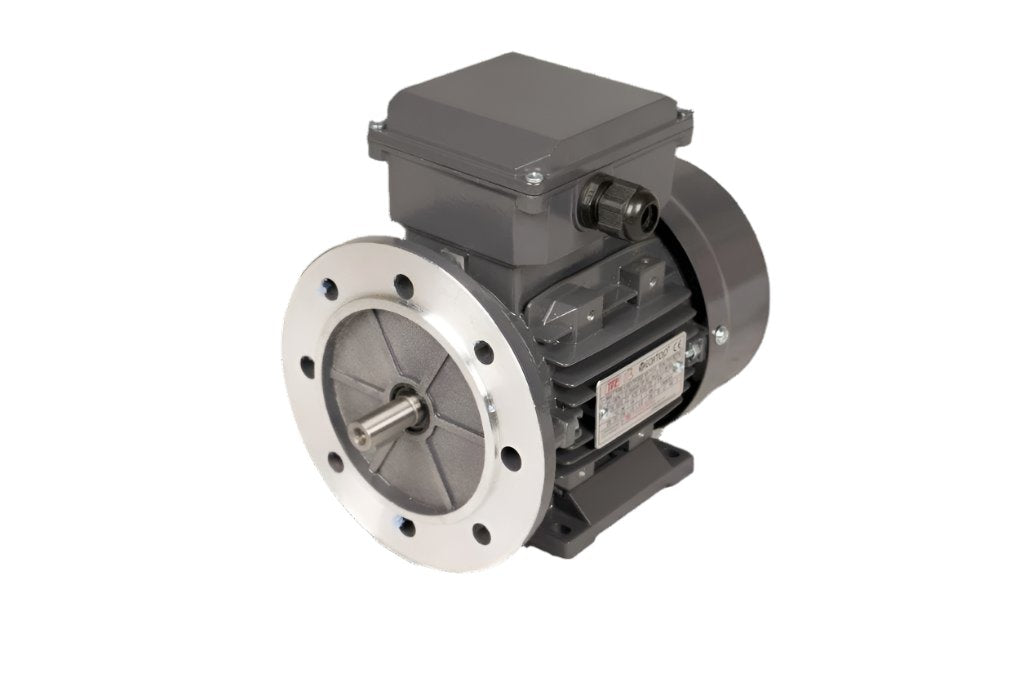

TecMotors 0.75kW 4 Pole Single Phase Cap Start Cap Run Electric Motor IE2 B35 Foot and Flange Mounting Frame Size 80

SKU: 0.7541TCCB35-IE2

£203.80 (Inc. VAT at 20%)

£169.83 (Exc. VAT)

The 0.7541TCCB35-IE2 TecMotors 0.75kW 4 pole single phase electric motor is a capacitor start, capacitor run motor with an IE2 efficiency rating. It has B35 foot and flange mounting with removable feet, providing flexibility when installing the motor. The motor has an aluminium construction and IEC frame size 80.

The TCC motor is designed for applications requiring high starting torque, including air compressors, pumps and other machinery that starts under load. It supports forward and reverse rotation and uses DOL (Direct On Line) starting. The motor has an S1 continuous duty rating and IP55 protection against dust ingress and water jets.

TEC recommends that single phase motors are not stop/started more than 15 times within a one-hour period to allow safe discharge of the capacitors. The motor has Class F insulation, TEFC (totally enclosed fan cooled) construction and NSK bearings.

Interested in saving money on energy costs? If you are considering motor speed control, speak to us about TECDrive inverters and we can help you identify a suitable motor and control combination. TEC also supplies gearboxes and geared motors for applications requiring torque control and power transmission, giving you the option to source the motor, inverter and gearbox together.

  • 0.75kW output power
  • 4 pole
  • Single phase
  • Capacitor start, capacitor run motor
  • IE2 efficiency
  • B35 foot and flange mounting
  • Removable feet
  • Aluminium construction
  • Frame size 80
  • Model ML-802-4
  • Insulation class F
  • S1 continuous duty
  • TEFC - totally enclosed motor, fan cooled
  • IP55 protection
  • Forward and reverse rotation
  • Shaft diameter 19mm
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Visa

Introducing 0.7541TCCB35-IE2 the Tec ML Series Capacitor Start Capacitor Run Motor, designed for environments demanding constant torque and unwavering performance. This 0.75kW, single phase motor combines a robust aluminium construction with advanced engineering to deliver superior efficiency and reliability.

Extended Product Description:

Boosted Starting Torque:The unique capacitor start capacitor run design of this motor ensures a high starting torque, making it an ideal choice for applications that require a powerful start. Whether you're operating pumps, conveyors, or complex machinery, this motor provides the initial push your equipment needs to perform efficiently from the moment it turns on.

High Performance Engineering:With an output power of 0.75kW and a 4 pole design, the motor is engineered for high performance in constant torque applications. Its totally enclosed, fan-cooled (TEFC) design not only enhances its performance but also ensures longevity by protecting the internal components from dust and water ingress.

Durability and Construction: Constructed with high grade aluminium, the motor is not only lightweight but also extremely durable. The B35 foot and flange mounting and frame size 80 design complement its robust construction, ensuring stability and ease of installation across a wide range of applications. Additionally, the removable feet offer flexibility for various installation requirements.

Superior Protection: Rated IP55, this motor is designed to withstand harsh conditions, providing protection against dust and water from any direction. This level of protection is crucial for maintaining operational integrity and longevity in environments where exposure to such elements is a concern.

Compliance and Standards:Manufactured in strict compliance with IEC 60034-5 standards, the ML-802-4 model reflects a commitment to quality and international safety standards. This adherence ensures that the motor is not only efficient but also safe for use across various industries.

Efficient Insulation and Duty Cycle:Equipped with insulation class F, the motor is capable of handling higher temperatures without compromising performance. Additionally, its S1 continuous duty rating signifies that it can maintain its operations indefinitely without needing a break, perfect for applications requiring uninterrupted service.

Versatile Applications:From industrial machinery to HVAC systems, the versatility of this motor makes it suitable for a broad spectrum of applications. Its boosted starting torque and continuous operation capability make it a reliable choice for businesses looking for efficiency and performance.

In summary, the Tec ML Series Capacitor Start Capacitor Run Motor is a testament to superior engineering and design. Offering a blend of power, performance, and protection, this motor is the ideal solution for industries seeking a high quality, reliable motor capable of meeting the demands of constant torque applications.

Specifications Sheet for Tec ML Series Capacitor Start Capacitor Run Motor

General Specifications:

Model Number:ML-802-4

Output Power: 0.75 kW

Pole Configuration:4 Pole

Mounting Type:B35 Foot and Flange Mounting

Construction Material:Aluminium

Frame Size:80

Phase:Single Phase

Insulation Class: F

Duty Cycle: S1 Continuous Duty

Protection Rating:IP55



Performance Features:

Starting Method: Capacitor Start Capacitor Run, for boosted starting torque.

Cooling Method: Totally Enclosed Fan Cooled (TEFC), ensuring effective heat dissipation.

Design Compliance:Manufactured in compliance with IEC 60034-5 standards.



Environmental and Operational Protection:

Ingress Protection: Rated IP55, providing protection against dust ingress and water jets from any direction, suitable for harsh environmental conditions.

Thermal Protection: Equipped with insulation class F, capable of withstanding higher operating temperatures.



Design and Construction:

Motor Frame:Robust aluminium construction ensures durability and lightweight for easy handling and installation.

Foot & Flange Mounting:B35 configuration with removable feet for versatile installation options.

Fan Cooling:Integrated fan provides efficient cooling to maintain optimal performance.



Applications:

Suitable for a wide range of applications requiring constant torque and high starting torque, including industrial machinery, HVAC systems, pumps, conveyors, and more.



Safety and Compliance:

Safety Standards:Conforms to international safety and performance standards, ensuring reliability and safety in demanding industrial environments.



Summary:

The Tec ML Series Capacitor Start Capacitor Run Motor is a high performance, single phase motor designed for applications that demand consistent power and high starting torque. With its durable aluminium construction, IP55 protection rating, and adherence to IEC standards, this motor is an ideal choice for industries looking for reliable and efficient operation in challenging environments. Its versatile mounting options, coupled with continuous duty capability, make it a valuable asset for various applications.

Frequently Asked Questions for the Tec ML Series Capacitor Start Capacitor Run Motor

1. What makes the capacitor start capacitor run motor different from other types of motors?

The capacitor start capacitor run motor is designed to provide a higher starting torque compared to standard single phase motors. This is achieved through the use of both a start and run capacitor, improving efficiency and performance in constant torque applications. It's especially beneficial for applications that require a powerful start with minimal slip.

2. Can this motor be used in outdoor applications given its IP55 rating?

Yes, the motor's IP55 rating signifies that it is protected against dust ingress and water jets from any direction, making it suitable for use in outdoor environments or indoor settings with harsh conditions. However, it's always recommended to ensure the operating environment complies with the motor's specifications for optimal performance and longevity.

3. Is this motor suitable for continuous operation, and what does S1 duty mean?

Absolutely. The motor is rated for S1 continuous duty, meaning it is designed to operate continuously without needing breaks. This makes it ideal for applications that require uninterrupted service, such as production lines, HVAC systems, and more.

4. What are the benefits of having an aluminium construction for this motor?

Aluminium construction offers several benefits, including reduced weight for easier handling and installation, excellent corrosion resistance for extended life in harsh conditions, and good heat dissipation properties. Its durability and lightweight nature make it a preferred choice for various industrial applications.

5. How does the insulation class F affect the motor's performance and safety?

Insulation class F is designed to withstand higher temperatures than many other insulation classes, allowing the motor to operate safely at elevated temperatures without risk of damage or deterioration. This high level of thermal endurance enhances the motor's reliability and extends its operational lifespan, even in demanding or continuous applications.
