TecMotors 55kW 4 Pole 3 Phase Cast Iron Electric Motor IE3 B35 Foot and Flange Mounted, Frame Size 250

The 55.043TECCB35-IE3 is a 55kW, 4 pole, three phase electric motor with an IE3 efficiency rating and B35 foot and flange mounting, with removable feet. Its frame and terminal box are made from cast iron, with a sheet steel fan cover and cast iron flanges and shields.

The motor is rated IP55, providing protection against dust and water jets. It has Class F insulation and IC411 cooling, with PTC (positive temperature coefficient) thermistors as standard. Fitted with NSK bearings.

This T3C motor conforms to IEC 60034 standards and has an S1 continuous duty rating.

This heavy duty, TEC cast iron motor is suitable for a range of industrial applications, including pumps, air compressors, fans, conveyors, material handling equipment and power transmission systems. It can also be used in wastewater treatment, agriculture, mining and other industrial environments.

TEC also supplies gearboxes and geared motors for applications requiring torque control and power transmission. These can be used alongside electric motors to meet different drive and mechanical transmission requirements.

• 55kW output power
• 4 pole
• Three phase
• 1470 RPM
• B35 foot and flange mounting
• Removable feet
• IE3 efficiency rating
• Heavy duty, cast iron construction

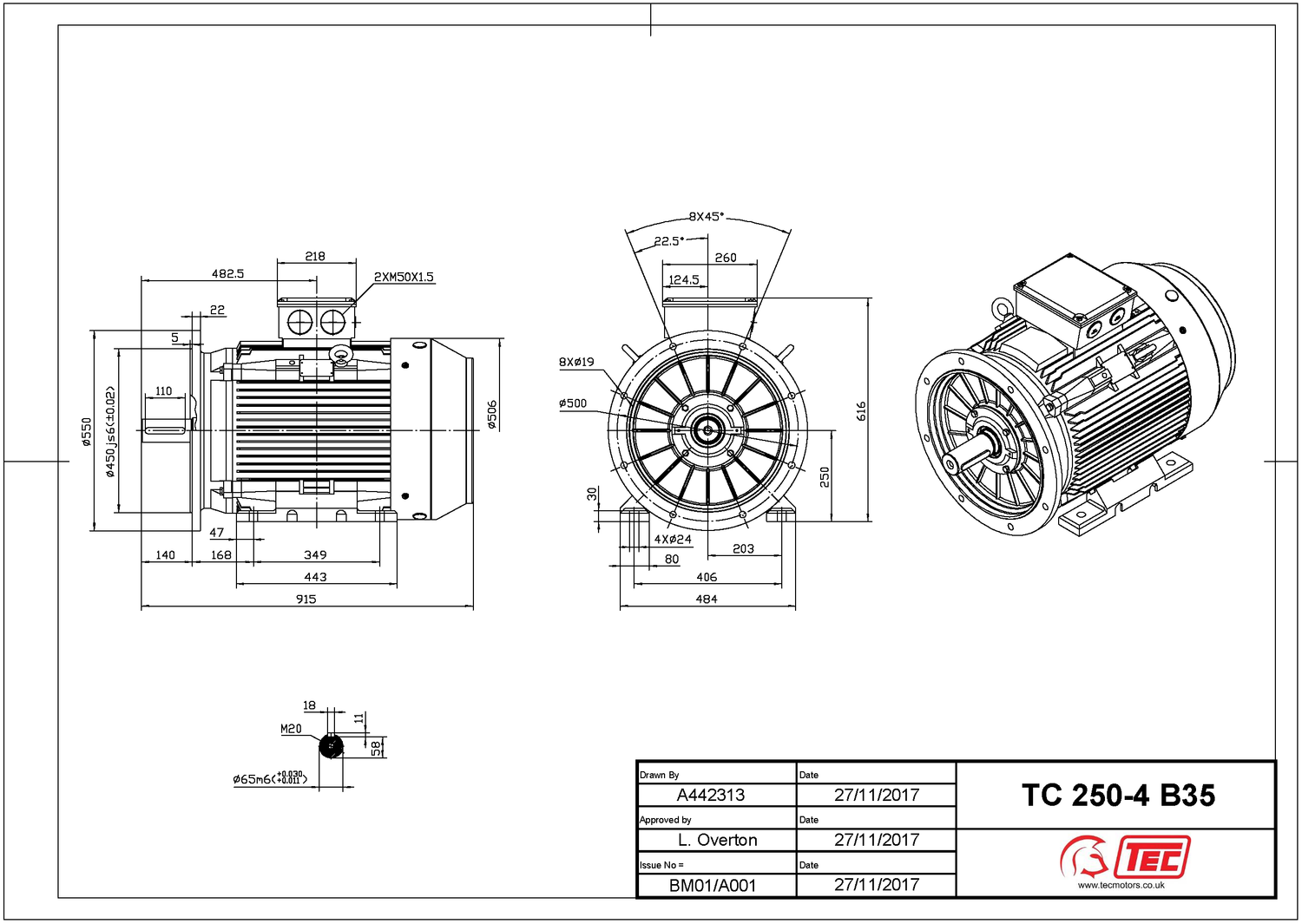

• Frame size 250M-4
• 50/60Hz
• Insulation class F
• S1 continuous duty
• IP55 protection
• Forward and reverse rotation
• Shaft diameter 65mm
