Acti9 RCBO 10A 30mA 1P+N Type C

SKU: SEE110C03

£46.20 (Inc. VAT at 20%)

£38.50 (Exc. VAT)

Acti9 iC60 modular RCBO (residual current breaker with overcurrent protection) with 1 protected pole and C tripping curve. A unique VisiTrip indicator reduces intervention time by showing the faulty circuit and a VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. For use in KQ LoadCentre A and B boards. Dimensions (W) 18mm x (H) 93mm x (D) 70mm.

  • SP + Ns
  • 10A rated current
  • Trip sensitivity 30mA
  • Breaking capacity 10000A
  • Lockable in the ON or OFF position
  • DIN rail mountable
  • Compliant with IEC 61009-1 and IEC 61009-2-2 standards

Acti9 RCBO 10A 30mA 1P+N Type C is backordered and will ship as soon as it is back in stock.

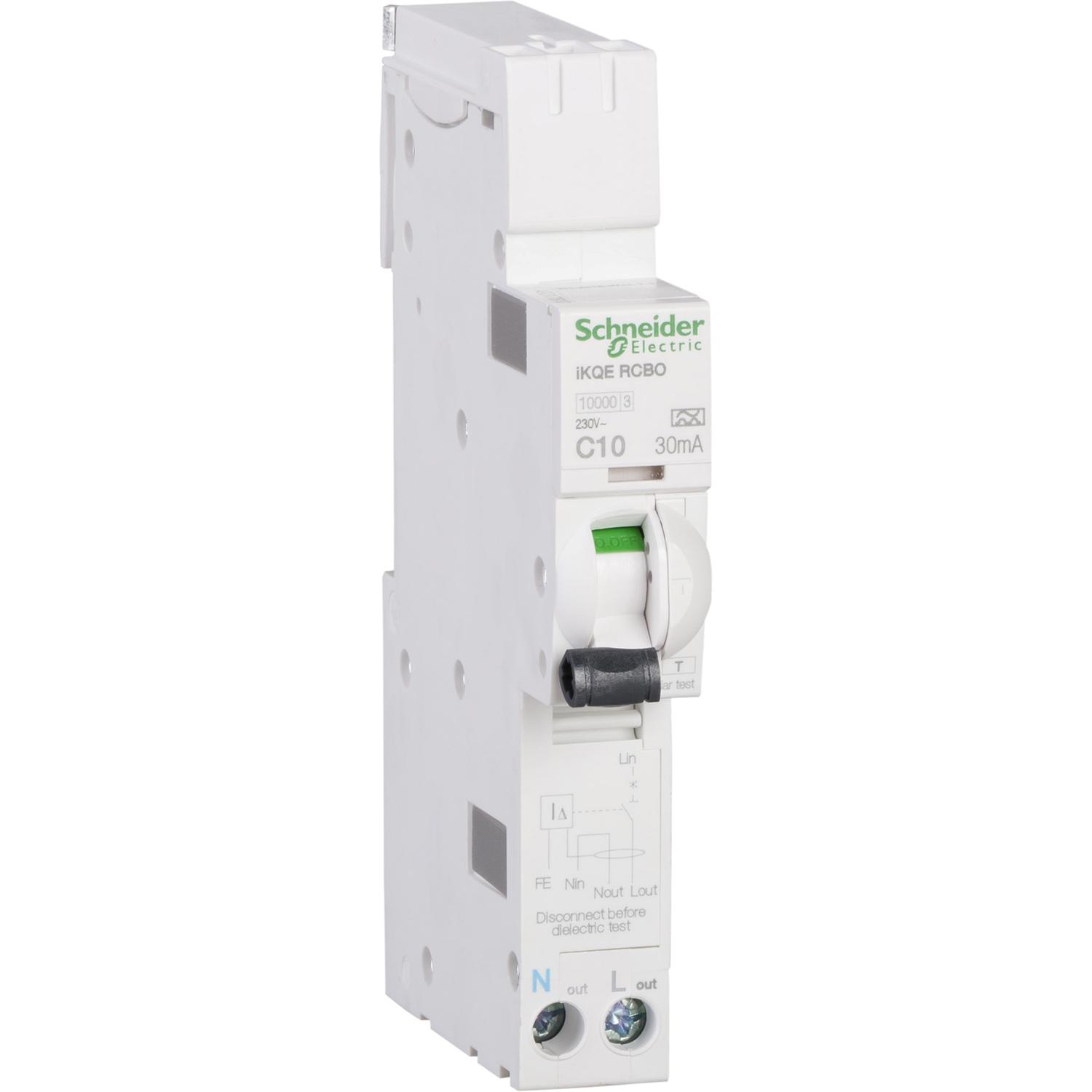

Image of a Schneider Electric SEE110C03 Acti9 RCBO 10A 30mA Single Pole +N available from Wholesale Electrical Direct
