Easy9 32A 1P Type B MCB

SKU: EZ9F16132

£2.70 (Inc. VAT at 20%)

£2.25 (Exc. VAT)

Easy9 range low voltage 32A miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and B tripping curve. The rated short circuit breaking capacity goes up to 6000A at 230V AC conforming to BS EN 60898-1 standard and 25kA at 24...48V DC conforming to EN/IEC 60947-2 standard. It is compliant with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). For residential and small commercial buildings. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.

  • Can be mounted on DIN rail for modular installation

Easy9 32A 1P Type B MCB is backordered and will ship as soon as it is back in stock.

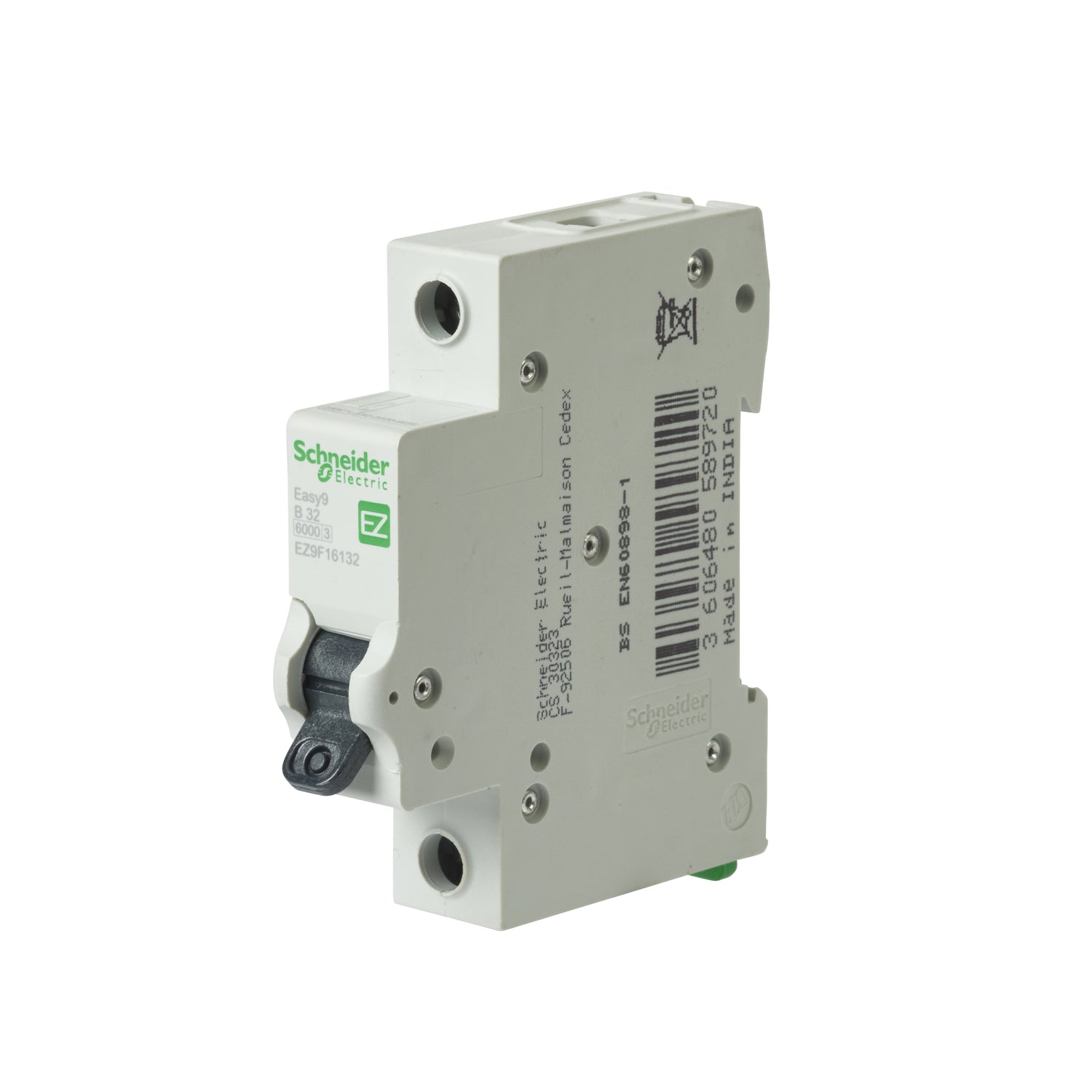

Image of a EZ9F16132 Easy9 32A 1P Type B MCB from Schneider Electric, available to buy at WED Online
Schneider Electric

Easy9 32A 1P Type B MCB

£2.70 (Inc. VAT at 20%)

£2.25 (Exc. VAT)

Easy9 range low voltage 32A miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and B tripping curve. The rated short circuit breaking capacity goes up to 6000A at 230V AC conforming to BS EN 60898-1 standard and 25kA at 24...48V DC conforming to EN/IEC 60947-2 standard. It is compliant with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). For residential and small commercial buildings. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.
